Pipe clamp
Scope of application: Drainage of roofs of large buildings such as airports, high-speed railways, gymnasiums, exhibition halls and large factories. (HDPE drainage on the same floor) It is used for toilet drainage of office buildings, high-rise residential buildings, hotels, guesthouses, etc
key word:
Category:
HDPE Roof siphon drainage system
Hotline:
Pipe clamp

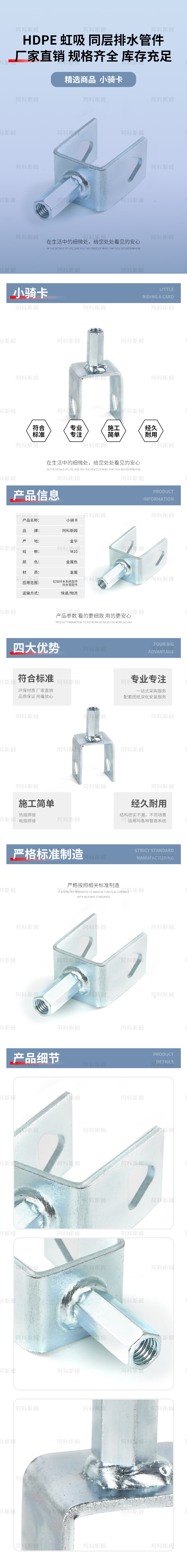

Product name: Xiaoqi Card, also known as: riding card, square steel elevator.
Scope of application: 30mm square steel pipe × 30mm × 2.0mm。
The specification of galvanized square steel pipe on the market is 30mm × 30mm × 1.7mm。
Material: hot-rolled steel plate.
Function: It is used together with M10 screw rod, small riding clip M10, pin, and hanging galvanized square steel pipe.
Installation spacing: 10-15 times of the riser diameter. It shall be installed according to the spacing specified in the design requirements or construction requirements.
The distance between the small riding card and the installation piece is generally 1 meter, and the specific installation is based on the spacing specified in the design requirements or construction requirements.
matters needing attention:
- The finished product in stock is cold galvanized, and if hot galvanizing is required, it needs to be customized temporarily.
- The size of square steel pipe used shall not exceed 30.5 mm.
- If it is difficult to insert in a certain space, it can be inserted in another direction.
